Customized Steam Boiler Economiser Ideal For Fuel Power Plants Steel Facilities

Τροποποιημένο:	1 σύνολο/σύνολα 10tons
τιμή:	διαπραγματεύσιμα
τυποποιημένη συσκευασία:	Συσκευασία
Προθεσμία παράδοσης:	30 ημέρες
μέθοδος πληρωμής:	Western Union, l/c, t/t
Ικανότητα εφοδιασμού:	500 τόνοι το μήνα

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής

Μάρκα

HD BOILER

Πιστοποίηση

ISO9001 , SGS , TUV , ASME , EN

Αριθμό μοντέλου

Εξοικονομητής

Υλικό:

Χάλυβας

Χρήση:

Λέβητας δύναμης Plant/CFB

Τύπος:

Φυσική κυκλοφορία

Ζωγραφική:

Προσαρμοσμένος

Παραγωγή:

Ζεστό νερό/ατμός

Καύσιμα:

Καύση άνθρακα/αερίου/πετρελαίου, θερμότητα νερού

Επισημαίνω:

customized steam boiler economizer

boiler economizer for power plants

steel facility boiler economizer

Περιγραφή του προϊόντος

Customized Steam Boiler Economiser Ideal For Fuel Power Plants Steel Facilities

Introduction

Economisers also lower the risk of thermal shock and sharp feedwater temperature swings when water enters the drum or waterwalls. Tighter environmental rules on NOx and SO₂ emissions also shape economizer design.

Since the gas-side heat transfer coefficient is far lower than the water-side one, tubes’ outer surfaces are often finned to boost heat transfer area. The main goal of economizer design is to get needed heat transfer at the lowest cost—with maximum allowable flue gas velocity as a key factor. Higher velocities mean better heat transfer and lower capital costs.

Boiler economizers are finned-tube heat exchangers that warm liquids (often water) without reaching their boiling point. We produce three types: bare-tube, H-finned tube, and spiral finned tube economizers. H-finned models are high-efficiency, made with H-finned tubes.

Compared to bare-tube economizers, H-finned ones expand heat exchange area, reduce tube count, and widen flue gas flow space—cutting velocity and wear. H-finned tubes can also be double-H type, with high rigidity for long tube rows.

Spiral finned economizers are new heat transfer units, using spiral finned tubes to solve heavy wear and short service life.

Function

(1) The economizer is a steam generation system as like a boiler. when the exhaust gas discharge from the engine cylinder through the exhaust valve it goes to the boiler for generate steam by heating of water.

(2) After those gas it goes through the economizer the remaining exhaust gas temperature is heated the water in economiser. it help to generate steam, and it is improving the efficiency and save the fuel consumption

(3) An economizer uses the waste heat from the boiler exhaust, that would otherwise be lost to atmosphere to (in most cases) preheat the feed water into the boiler.This improves the boiler efficiency and reduces fuel costs.

Technical specifications

Material Structure
Consists of a serious of spiral fin tubes, the headers of inlet and outlet, bend, frame and other auxiliaries.
Structure Arrangement
In line / staggered arrangement.

Specifications

Description	Boiler economizer
Material	Alloy steel, Carbon steel, SA210C ,SA213T22, etc.
Material standard	ASTM, EN or ISO etc.
Dimension	Customization
Weight	Min: 10 ton Max.:1000 ton
Smelting Process:	EF+LF + VD
Process	Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection
UT standard	ASTM A388 or EN10228, etc

Variety

Utility Boiler Economizer

1	HDB produces economizers for utility boilers, which includes boilers fueled by coal, wood, oil, or other solid fuels to produce electricty from the boiler's high pressure steam.
2	These economizers are usually located in the back pass of the boiler and oriented with the tubes running horizontally.The boiler feedwater runs through the economizer circuits in the opposite direction of the gas flow (called counterflow).
3	Bare tubes are typically utilized in order to minimize ash fouling, but some boiler OEM's design their economizers with finned tubes, either spiral or long finned.
4	HDB can produce economizer elements with either bare, spiral finned, or long finned tubes, and if you prefer, re-design your unit to one of the other tube-types. HDB can also fabricate replacement headers for all utility boiler economizers.

Package Boiler Economizer

1	HDB has unique manufacturing capabilities that the Optimus engineers take full advantage of when designing sulfuric acid plant economizers and superheaters.
2	Often this allows the Optimus units to be configured for higher heat transfer efficiencies which results in a reduced surface area requirement and, consequently, a lower-priced product.
3	HDB utilizes its on-site capabilities to fin and bend the tubes, machine and fabricate the headers, drill the tubesheets, cut and prep all casing materials, and perform all of the pressure part and casing welds.
4	This gives HDB more control of the manufacturing sequence and schedule which has helped us achieve a remarkable record of on-time delivery performance.

HRSG Economizer

1	Economizers for today's HRSG modules are configured with fintubes that hang vertically. HDB has fabricated economizer coils for virtually all of the HRSG OEM companies and understands the unique features of each.
2	In many cases, utilities desire to upgrade their economizers from plain carbon steel to an alloy material to help resist flow accelerated corrosion (FAC) inside the headers and tube bends.
3	HDB is a one-stop shop for economizer fabrication because we prep all the materials and perform all of the pressure part and attachment welding, from finning the fintubes, fabricating the headers, and assembling the coil bundle.

Manufacturing and acceptance criteria

·	JB/T6512 "boiler with a high-frequency resistance welding spiral fin tube manufacturing technology conditions"
·	HG/T3181 "high-frequency resistance welding spiral fin tube"
·	JB/T6511 "spiral finned tube test technical conditions."
·	JB1611 "boiler tube mane box assembly conditions"
·	JB/T1612 "boiler pressurufacturing conditions."
·	JB16I3 "boiler pressure parts welding conditions."

*Note:HD BOILER can bespoke special type of economizer according to customer's requirement.

Internal heat exchangers

1.Subcooling may also be produced by superheating the gas leaving the evaporator and heading to the gas compressor.

2.These systems withdraw heat from the liquid line but heat up the gas compressors suction.

3.This is a very common solution to insure that gas reaches the compressor and liquid reaches the valve.

4.It also allows maximum heat exchanger use as minimizes the portion of the heat exchangers used to change the temperature of the fluid,and maximizeds the volume in which the refrigerant changes its phase.

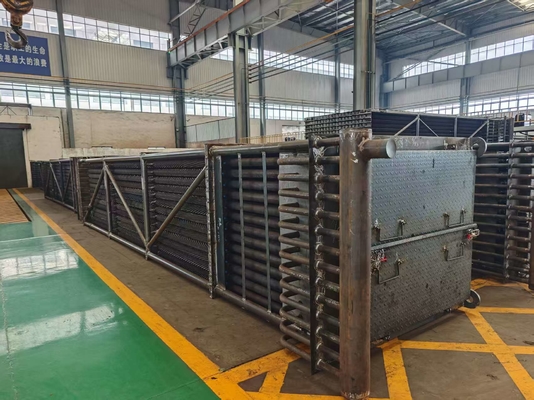

Customized Steam Boiler Economiser Ideal For Fuel Power Plants Steel Facilities 0
